Test and Fill Lubricators

Request a Quote Today

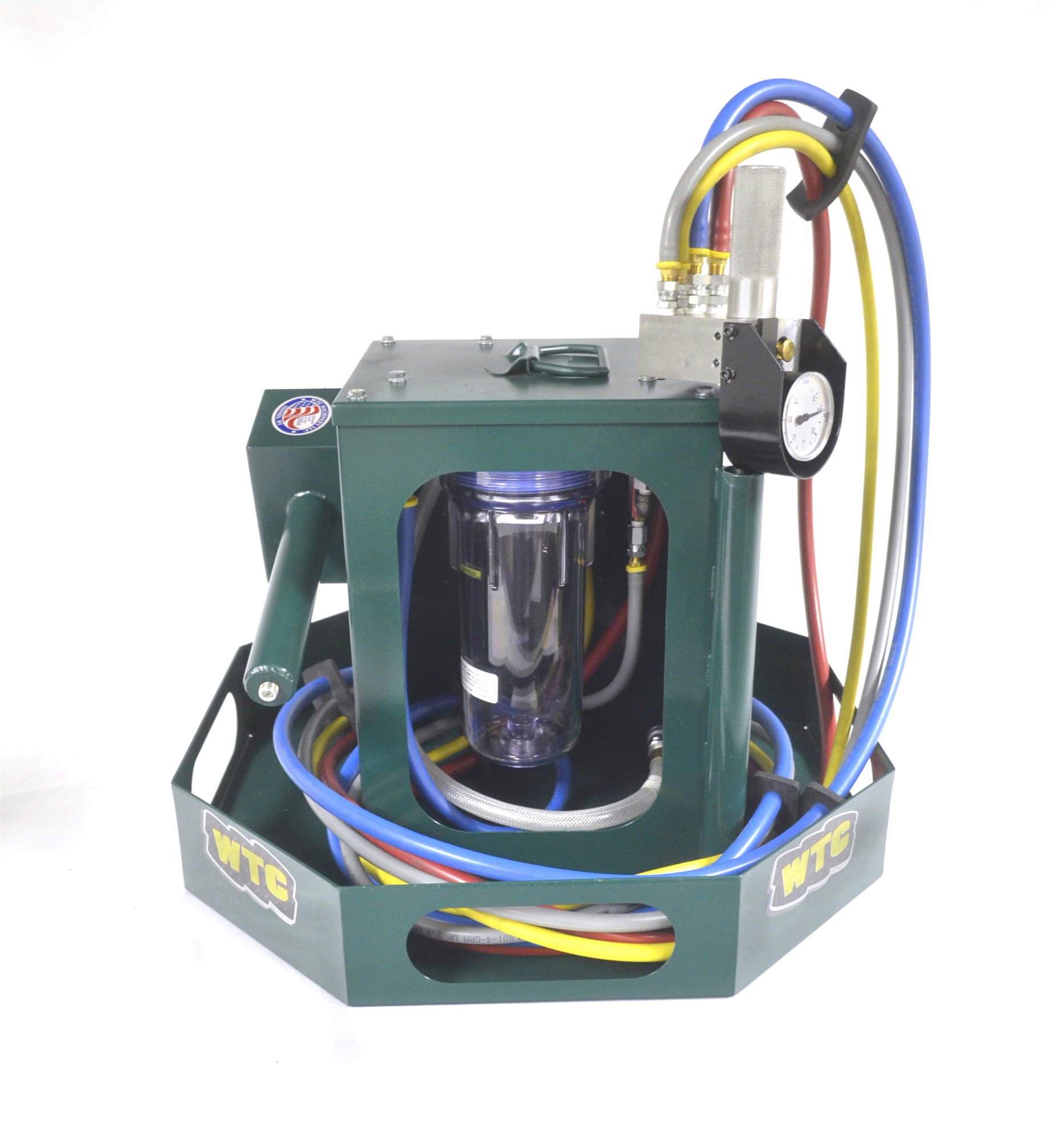

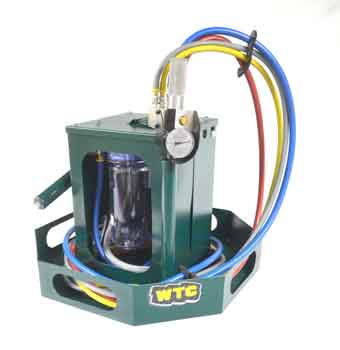

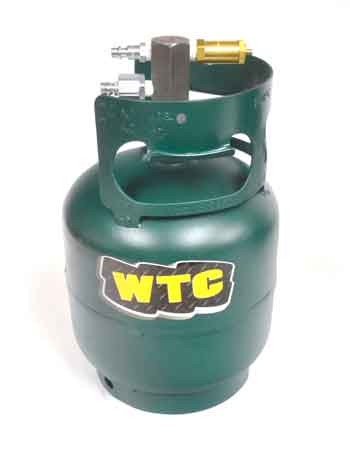

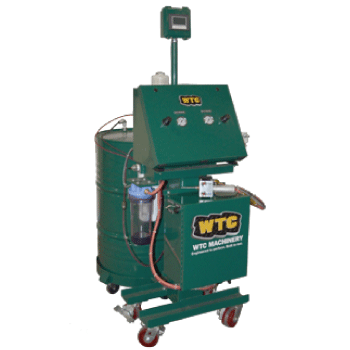

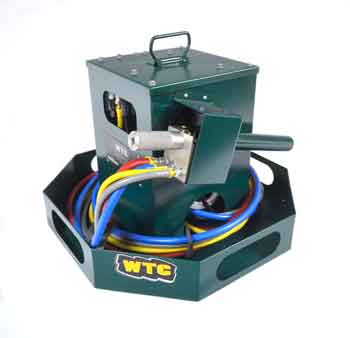

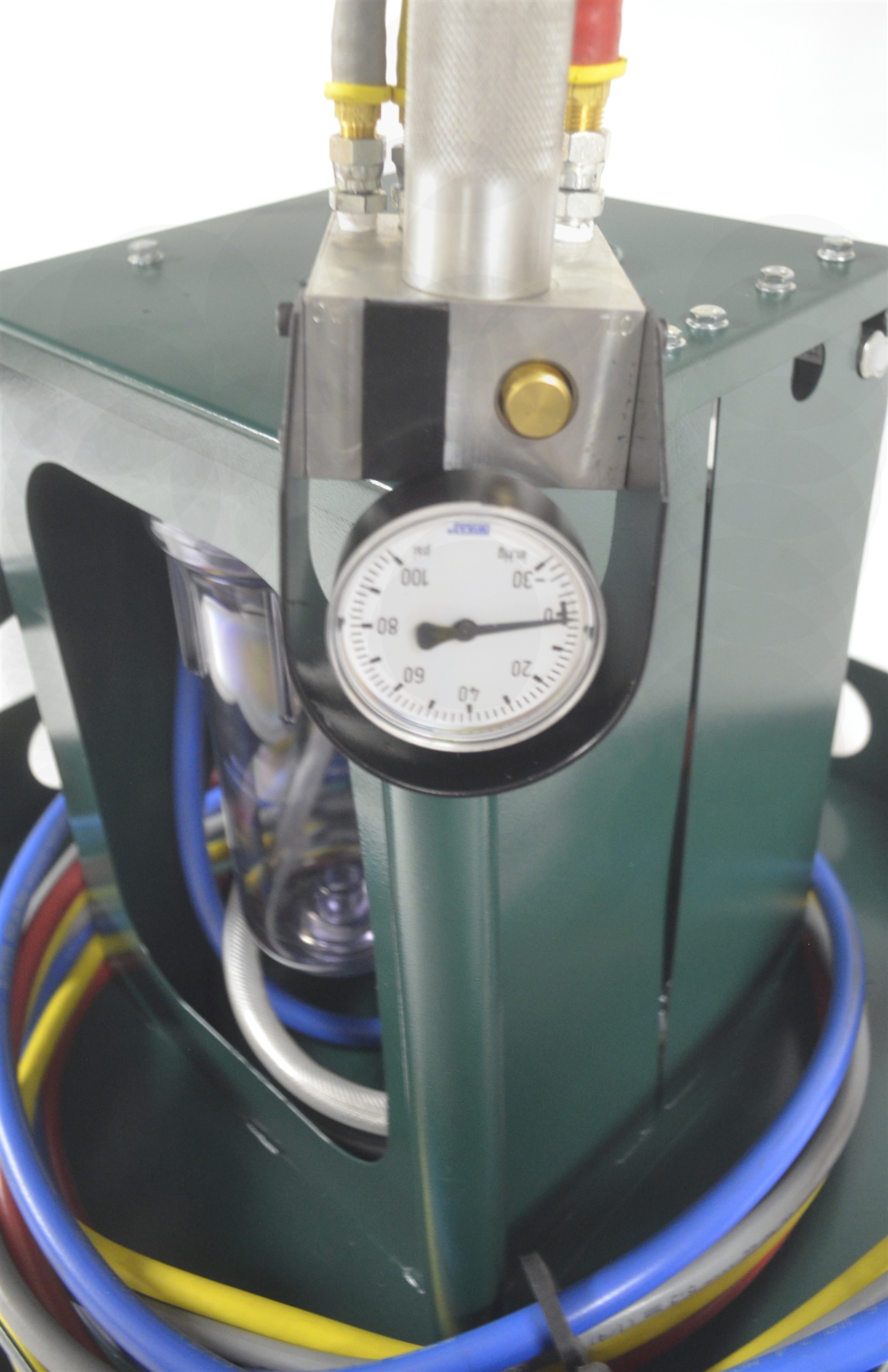

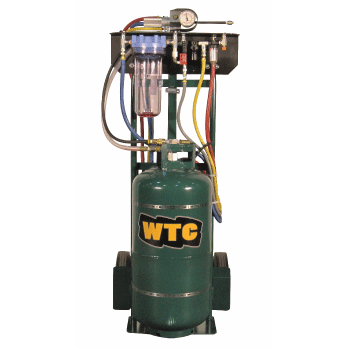

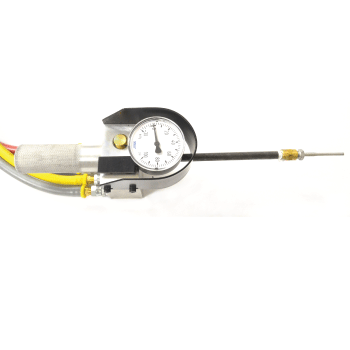

After replacing a pin or doing a full pin and bushing turn on a Sealed and Lubricated Track (SALT Track) it is time for lubrication. WTC Machinery has three lubricator options to fit whatever need you have. Our newest option is our Mini Luber, perfect for field repairs. At only 40 pounds dry weight it is portable enough to carry and can be used anywhere compressed air is available. The next step up is our Seal Tester Lubricator which could be used in the field or in a shop situation. With a 10 gallon tank for lubricant a full chain can be lubricated after a turn if needed. Looking for something more automated with even more capacity our Auto Luber would fit the bill. With one touch operation a testing and lubrication is done automatically allowing the operator to do other work while still testing.

SPECIFICATIONS

LUBRICATOR OPTIONS

Lubricators Air Supply Lubricant Capacity Dry Weight Electrical Requirements
Mini Luber - New 70 and 150 PSI (4.83 and 10.35 bar) 1 gallon (3.78 liters) 47 lbs (21.32 kg) N/A
Seal Test Lubricator 70 PSI (4.83 bar) 10 gallon (37.8 liters) 104 lbs (47 kg) N/A
Auto Luber 80 and 150 PSI 15 or 25 gallon N/A 115V/60Hz (22 Amps)
  (5.5 and 8.3 bar) (56.78 or 208.19 liters)   220V/50Hz (1.1 Amps)
