CR11 Roller & Idler Rebuilder

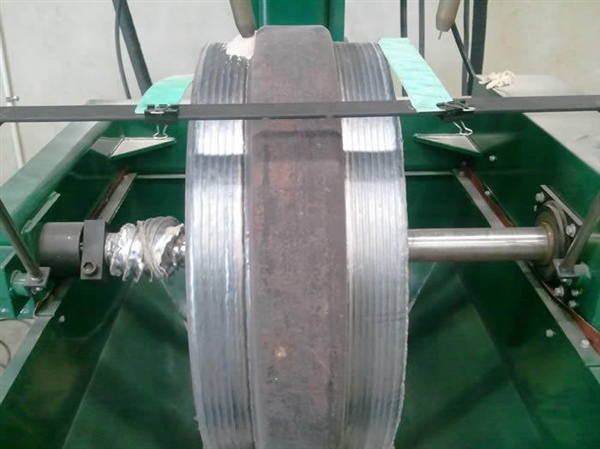

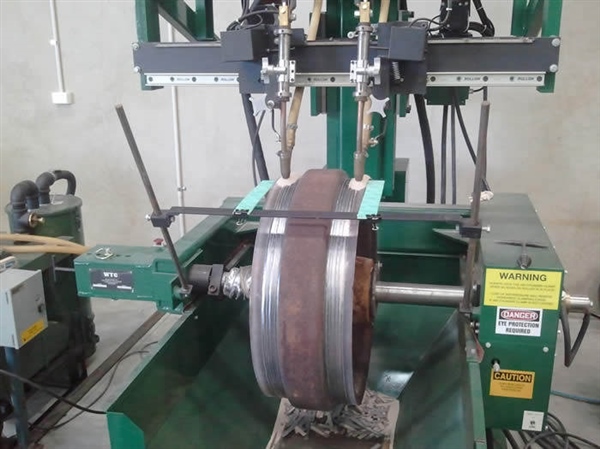

WTC Machinery's CR-11 Roller Idler Rebuilder is the modern, efficient way to rebuild worn idlers and rollers. The two high amperage weld heads come complete with power sources, and assure high deposition rates with both circumferential (stringer) and oscillate (cross) welding methods.

The standard power yoke tilt handles flange welding and the simple, straight-forward controls guarantee easy operator training. The high capacity wire holders, flux hopper and included flux recovery system provide uninterrupted welding for the biggest jobs.

The optional Jib Crane, "J" Hooks and Lifting Tongs allow the CR-11 to work without forklifts or building cranes, and the optional Water System avoids bore shrinkage when welding assembled rollers.

Contact WTC Machinery to find out more about our line of Flux-Cored Welding Wire equipment.

Why is the dual head CR11 so efficient?

Efficiency
- Two heads are better than one. Gets the job done in half the time.
Head Control
- With different head control options the service style is up to you
Automatic Flux Recovery
45 Degree tilt for inner welding

SPECIFICATIONS

MACHINE DIMENSIONS

Main Welder	5000 lbs(2270 kg)	90 in (2.3 m)	130 in (3.3 m)	80 in (2.0 m)
	Weight	Width	Height	Length
Power Supplies (x2)	800 lbs(370 kg)	24 in (0.7 m)	36 in (0.9 m)	42 in (1.1 m)
Flux Recovery Pump	200 lbs(90 kg)		30 in (0.8 m)	37 in (1.0 m)
Water Cooling System(Optional)	150 lbs(70 kg)	15 in (0.4 m)	27 in (0.7 m)	30 in (0.8 m)

Operating Temperature Range: 40° to 110° (4° to 43° C)

WORKPIECE DIMENSIONS

Maximum Weight:	2,000 lbs (910 kg)
Maximum Diameter:	52 inches (1320 mm)
Maximum Width:	26 inches (660 mm)

Machine Supply

Compressed Air Requirements:	80 to 120 p.s.i (5.5 to 8.3 atm) - 5.0 ft3/min (0.15 m3/min)

FLUX RECOVERY SYSTEM

Flux Pump Type:	2-Lobe "Roots Type
Flux Hopper Capacity:	4900 in3 (81 liters)
Power Requirements:	1½ Hp 1.1 kW

WELDING POWER SUPPLIES

Two welding power supplies. Power requirements - (26.0 kVA each)

Maximum Current	600 Amperes	230 Volts	108 Amperes Each
	Output	Voltage*	Current
Maximum Voltage	60 Volts	380 Volts	67 Amperes Each
Duty Cycle	100%	460 Volts	54 Amperes Each

*Other voltages available

ELECTRICAL

Voltage*:	230 Volts	380 Volts	460 Volts
Current:	5.4 Amperes	3.0 Amperes	2.7 Amperes

*Other voltages available

WIRE PAY-OUT PACK

Two pay-out packs – Capacity sized for all popular welding wire barrel containers.

Maximum Wire Barrel Capacity:	24 in. (628 mm)
Minimum Wire Barrel Capacity:	6 in (152 mm)
Maximum Wire Barrel Weight:	1200 lb (540 kg)

*Other voltages available

Water Cooling System (Optional)

Used in roller service, the Water Cooling System transfers heat from the roller currently being welded to the next roller to be welded. This eliminates bore shrinkage, and shortens pre-heat time. The included Adapter Kit allows use with most undercarriage types.
