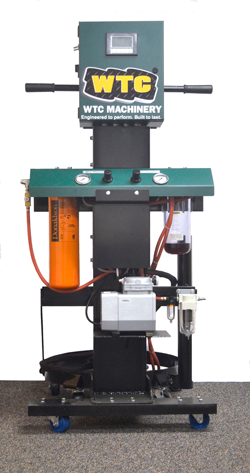

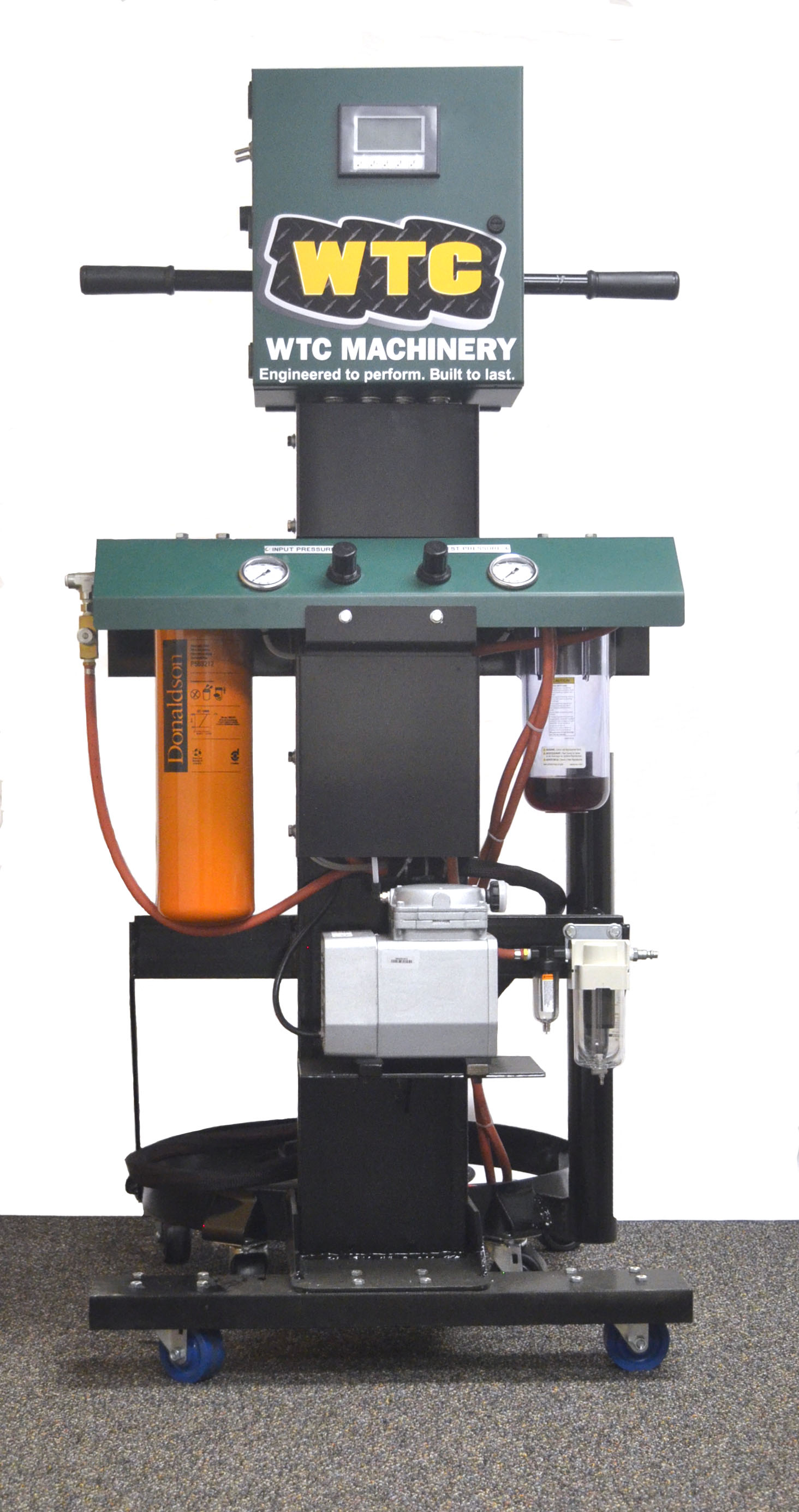

Auto Luber

The WTC Machinery Auto Luber is the easiest, most accurate way to test and lubricate the track pin and bushing joints. It can be used on bulldozers, excavators, and other crawler equipment or equipment with track type chains.

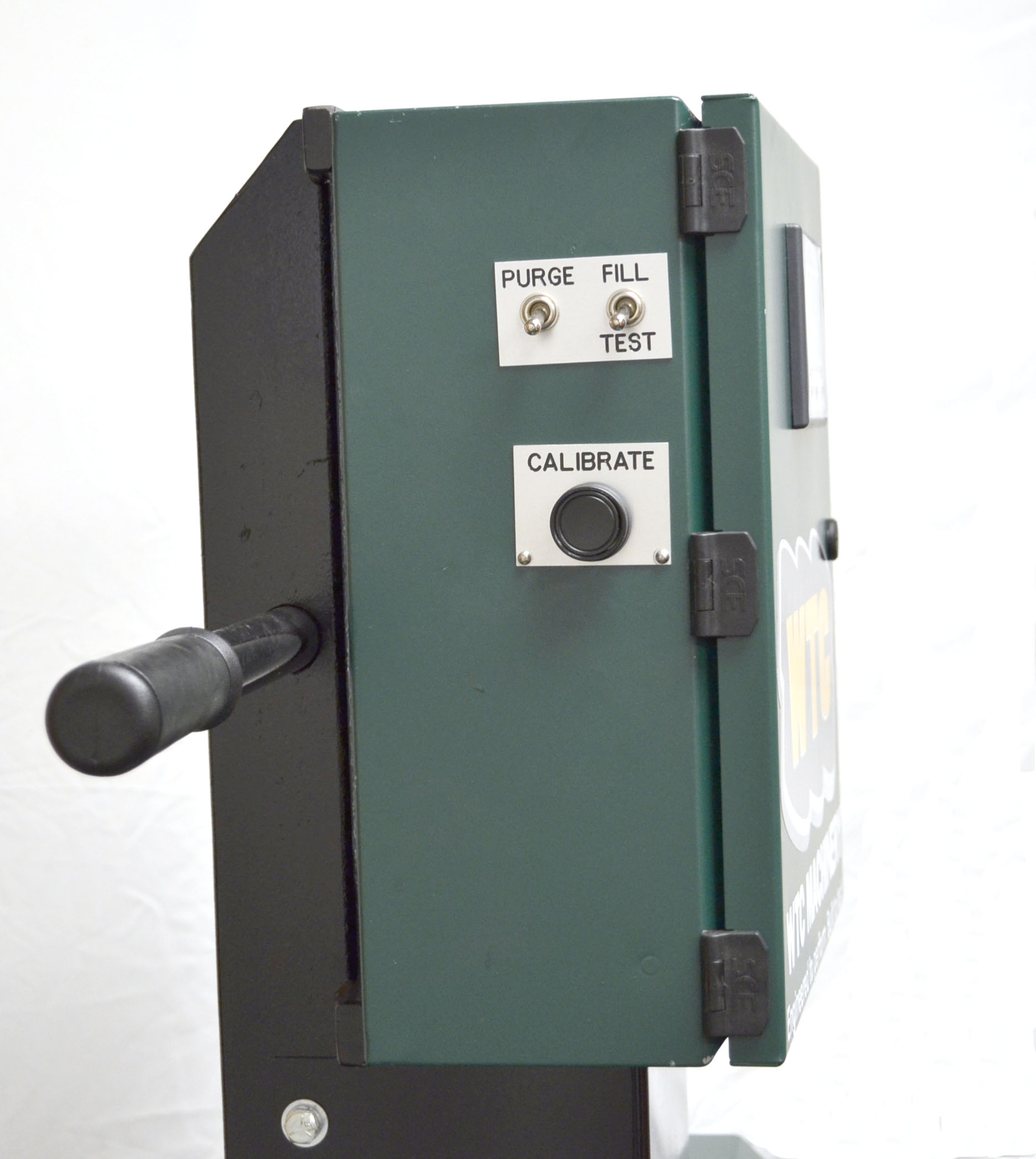

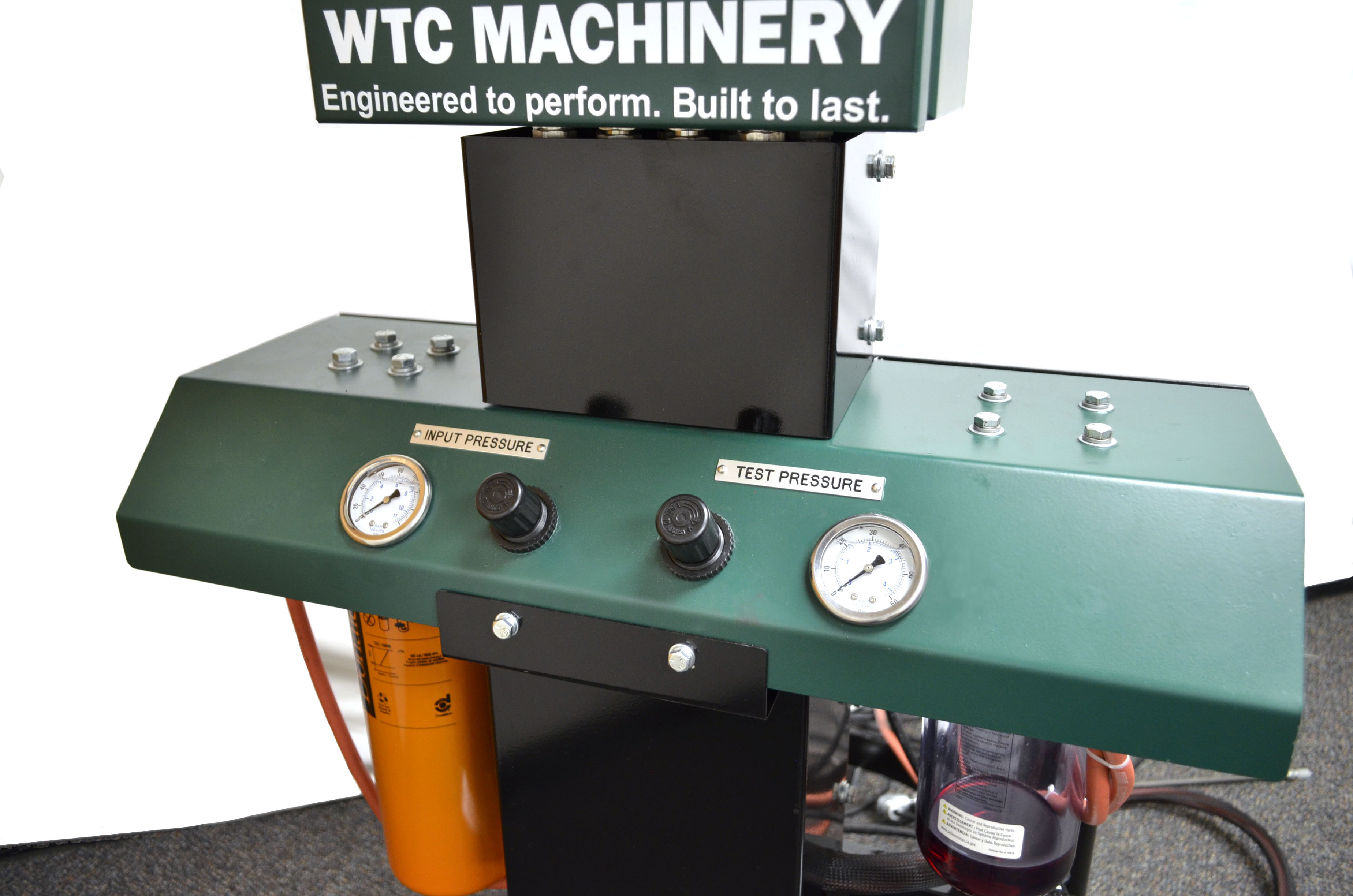

The single-button Automated Testing Cycle includes Pressure, Vacuum, and Fill Cycle Tests, with 10-second test vacuum and pressure tests, for a thorough testing of the track seals. The WTC Auto Luber features an easy to read display that clearly shows the progress of the testing, as well as the results.

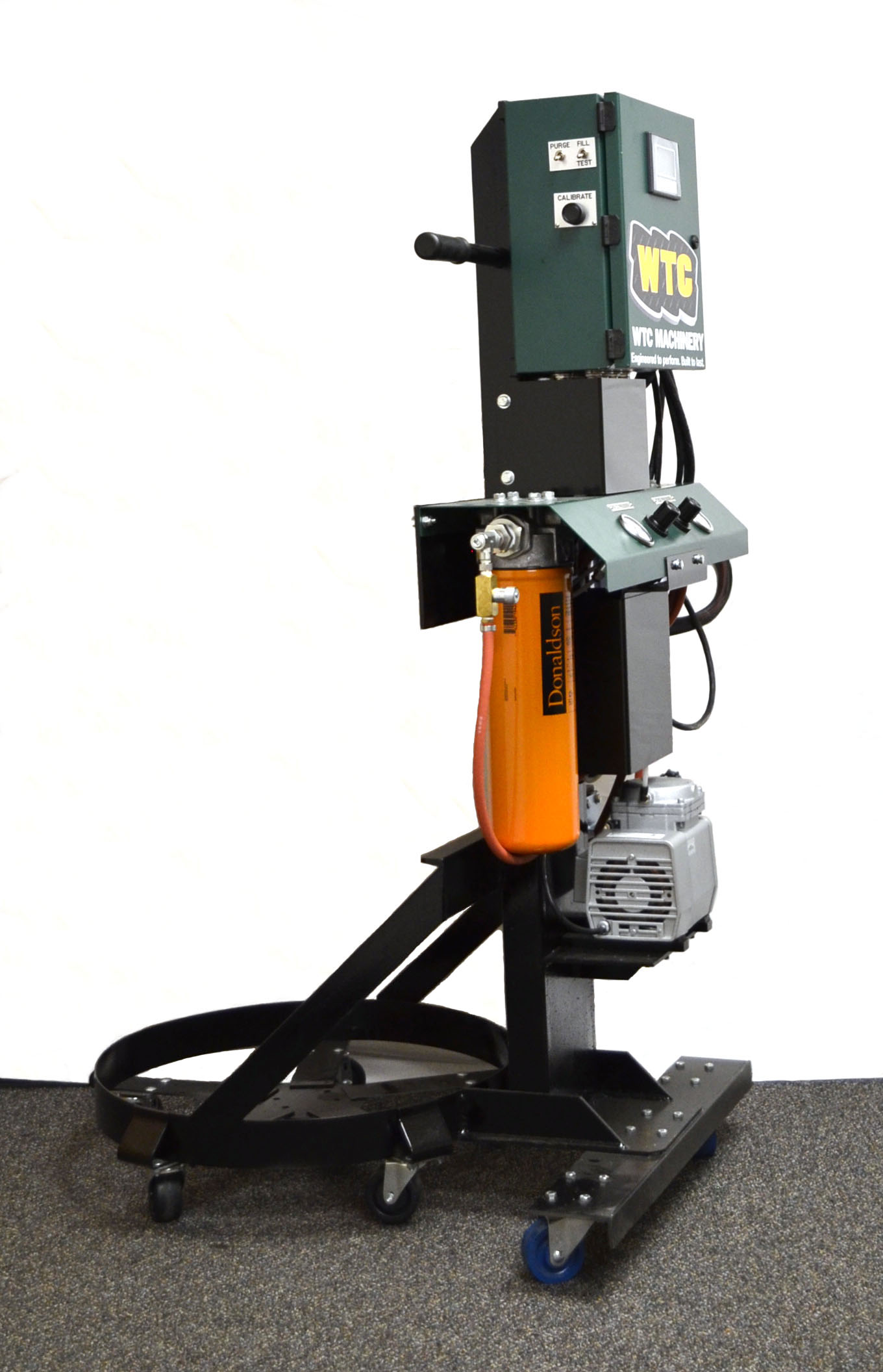

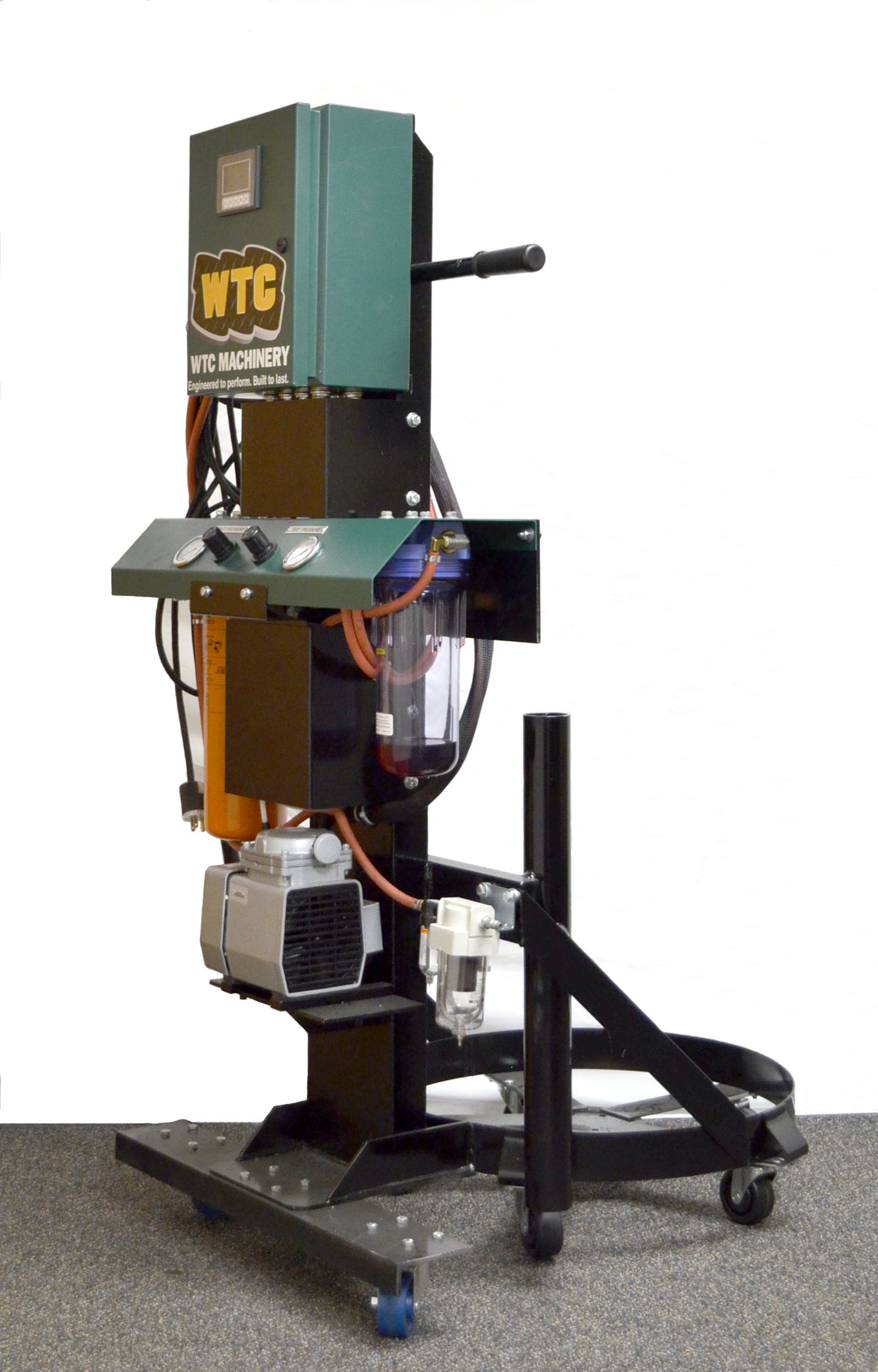

The Auto Luber includes a Mobile Cart, so it can also fill rollers, idlers, and do other lubricating tasks. The WTC Auto Luber is able to be coupled with a number of lubricant tank sizes, from a 10-gal tank up to a 55-gallon drum.

If this option is more than what you need check out our manual Seal Tester Lubricator or our Mini Luber options.

NEEDLES

OPTIONAL NEEDLES FOR LUBRICATING TRACK CHAINS

Part Number:	Description:
A2024	Blunt Needle - normally used for CAT track
A2679	Rounded Tip - small diameter normally used on JD and Komatsu track
A3334	Sharp Tip - normally used on seals that are self-sealing (Sorefa)
A3422	Shaft of needle has two diameters and an open tip

SPECIFICATIONS

Electrical:	115V / 60 Hz 1-Phase – 2.2 Amps or 220V / 50 Hz 1-Phase – 1.1 Amps
Air Supply:	80 – 120 psi (5,5 – 8,3 Bar) 4.0 scfm (0.06 m3/min)
Lubricant Capacity:	55 gallon (208.2 L) or 15 gallon (56.8 L)
Dry Weight:	370 lb (136 kg)
Dimensions:	29"H x 59"W x 37"D

DOWNLOADS

Auto Luber Product Specification Sheet - English

Auto Luber Product Specification Sheet - Spanish

Reference image for needle types
