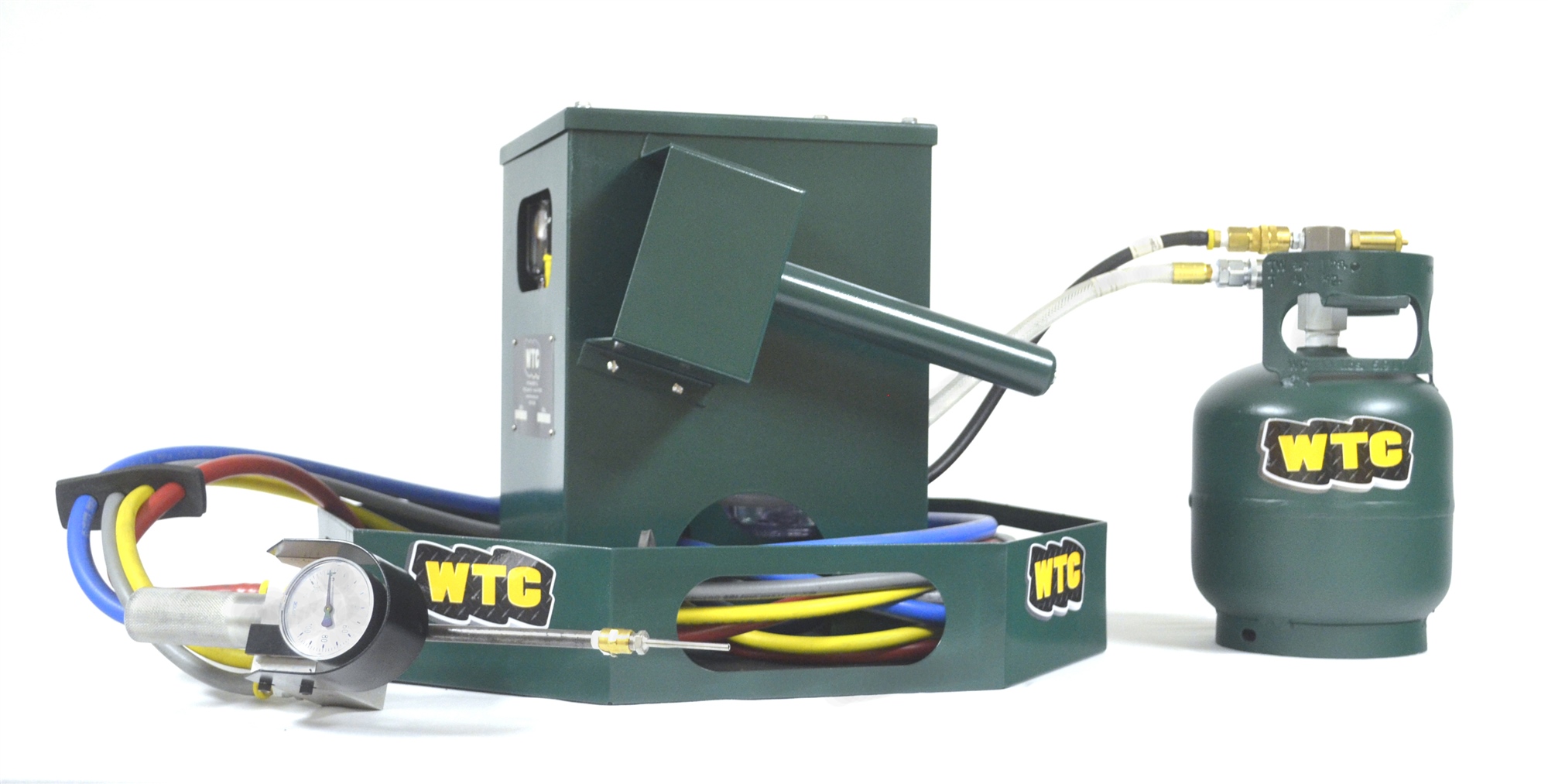

WTC Mini Luber

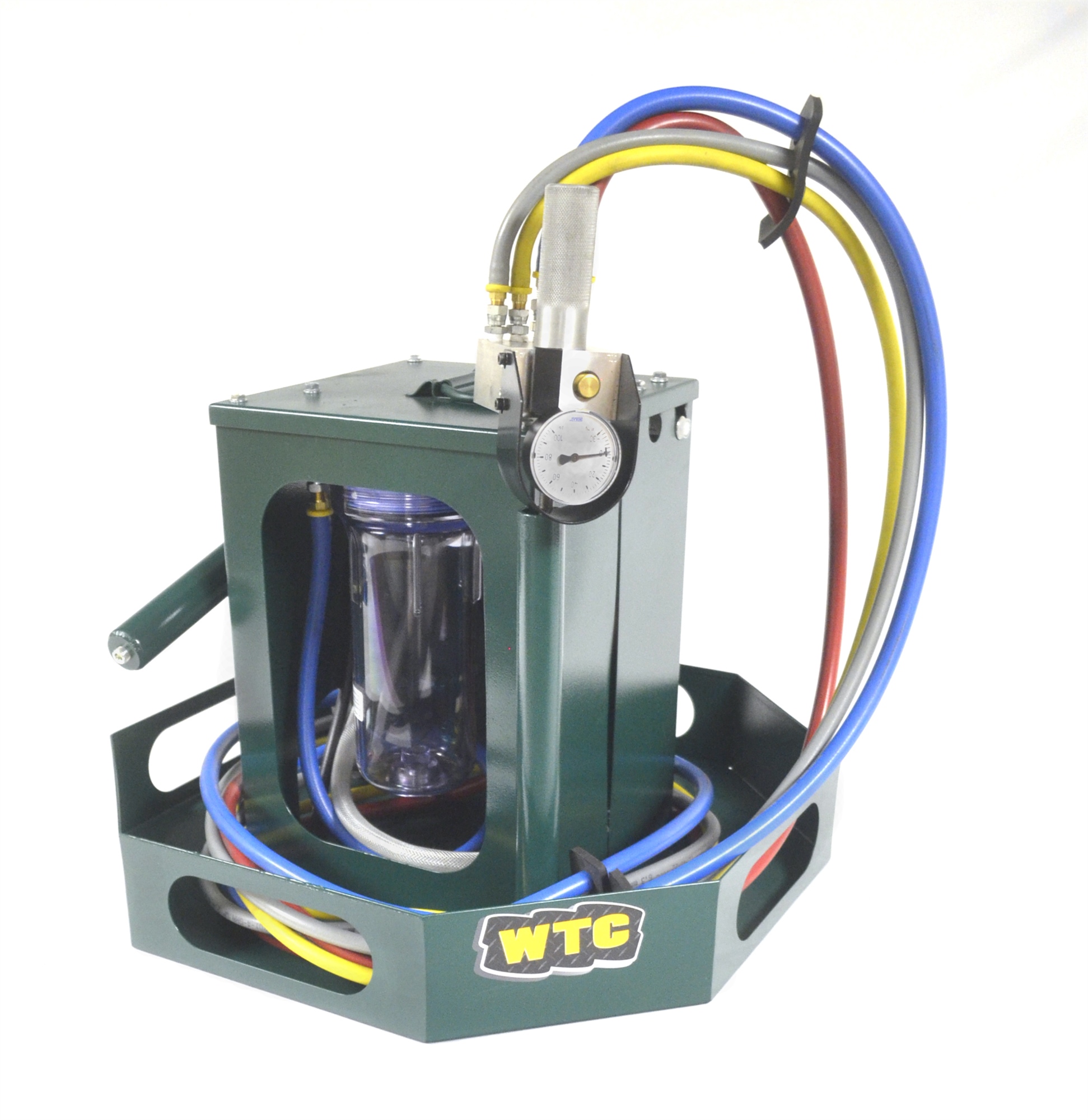

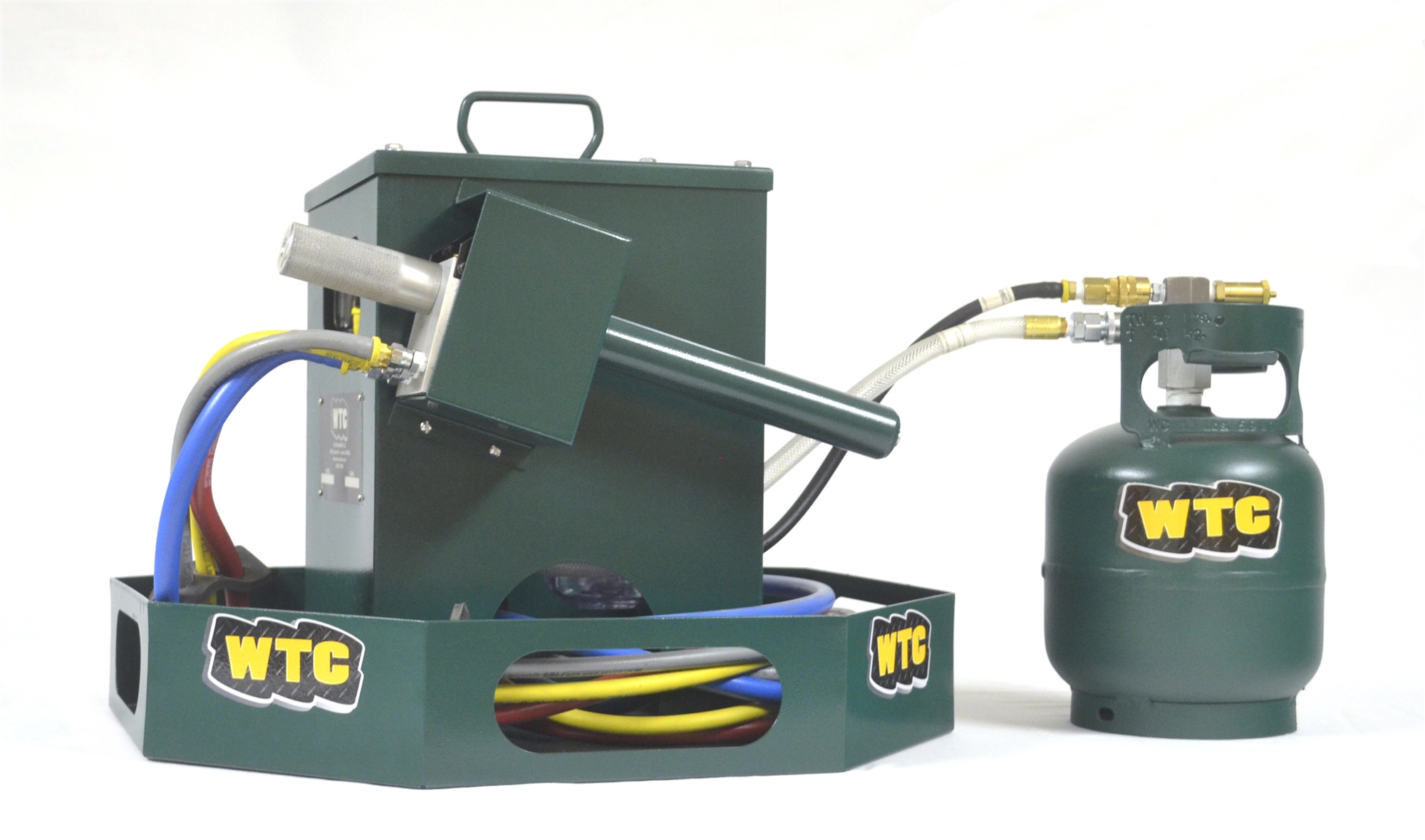

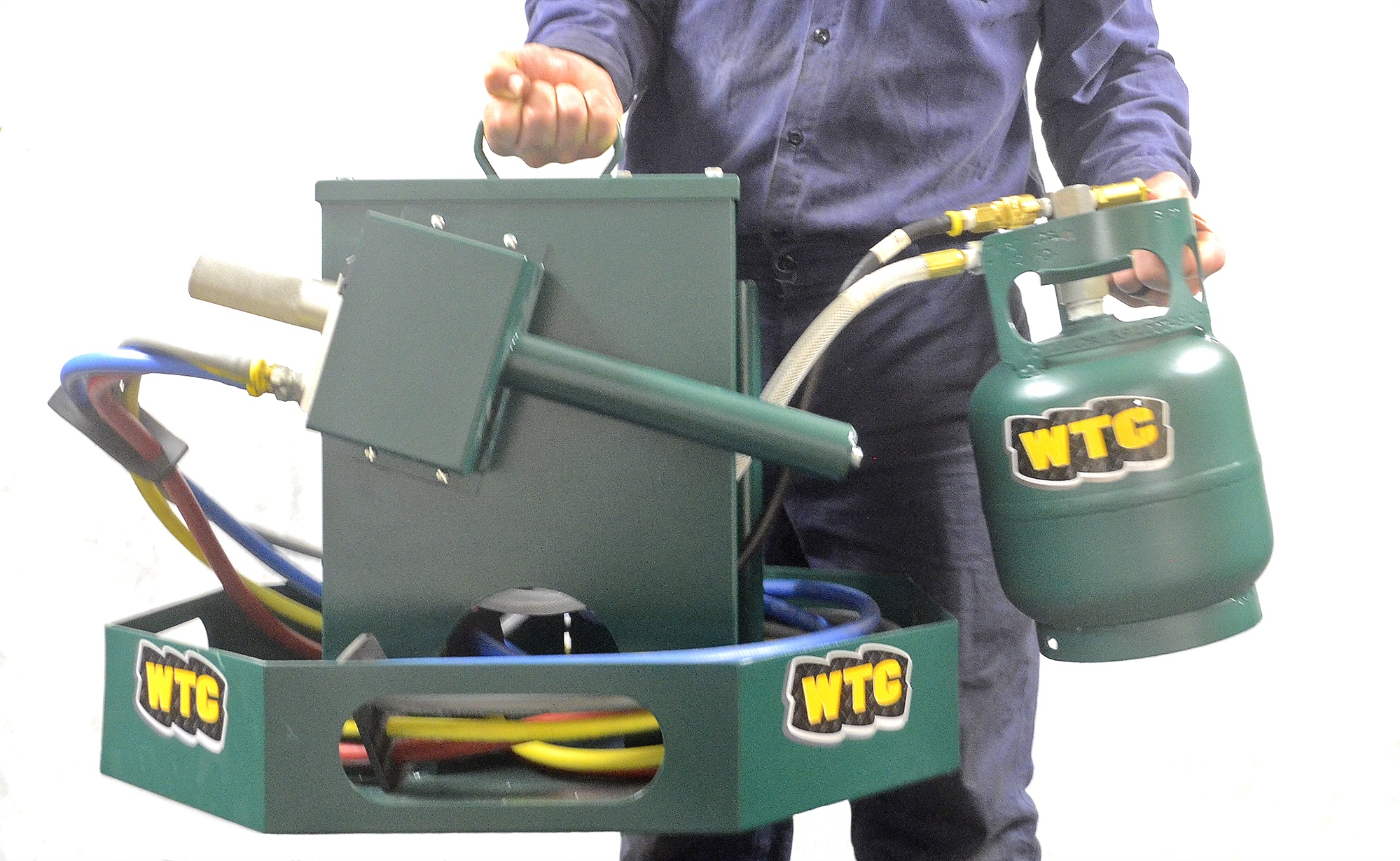

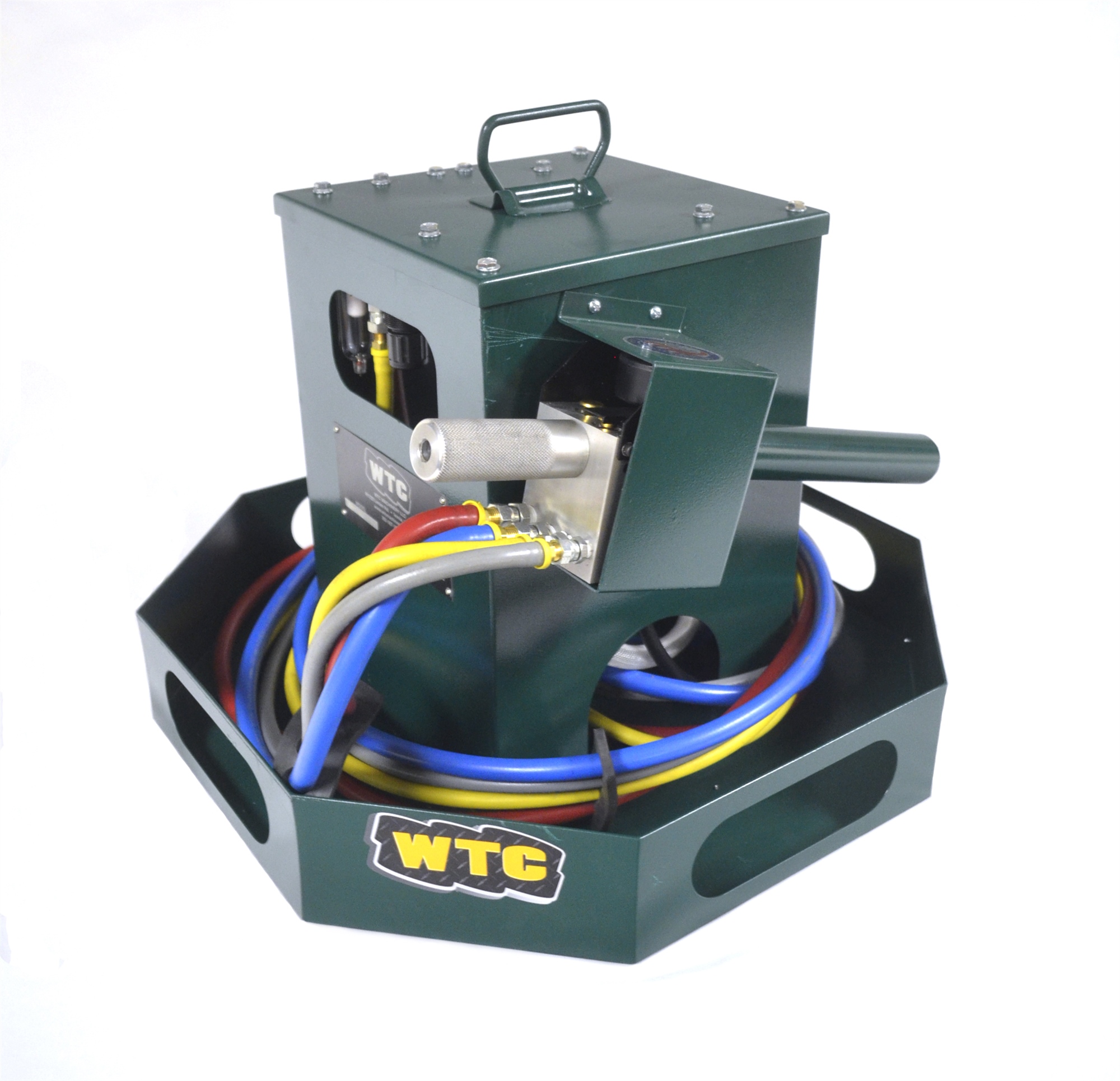

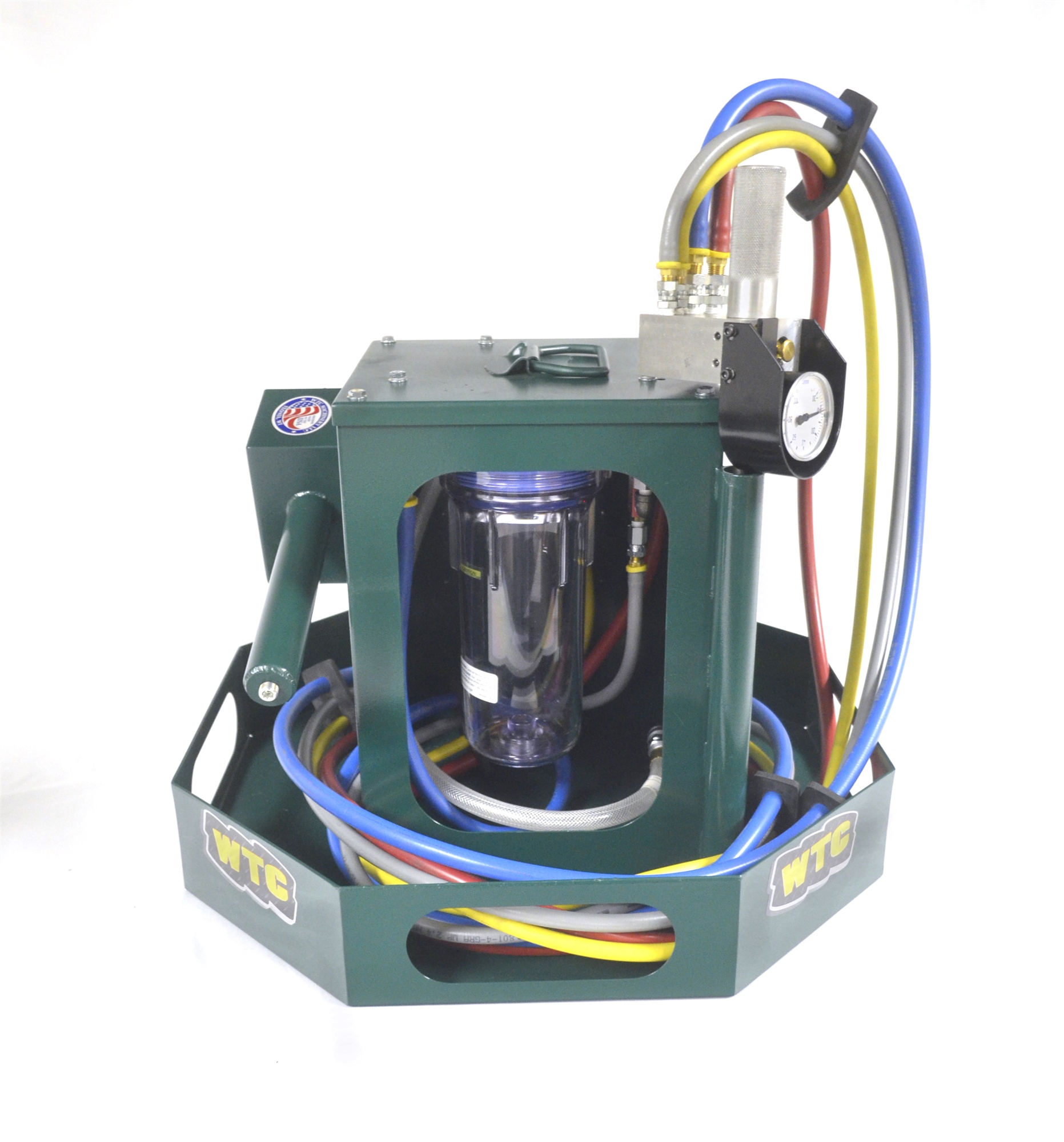

WTC Machinery’s Mini Luber is the portable solution for job-site repair of sealed and lubricated (SALT) crawler track chains. Sturdy construction stands up to field service, the small size makes it easy to fit on a service truck, and its light weight makes it easy to carry to a job anywhere compressed air is available.

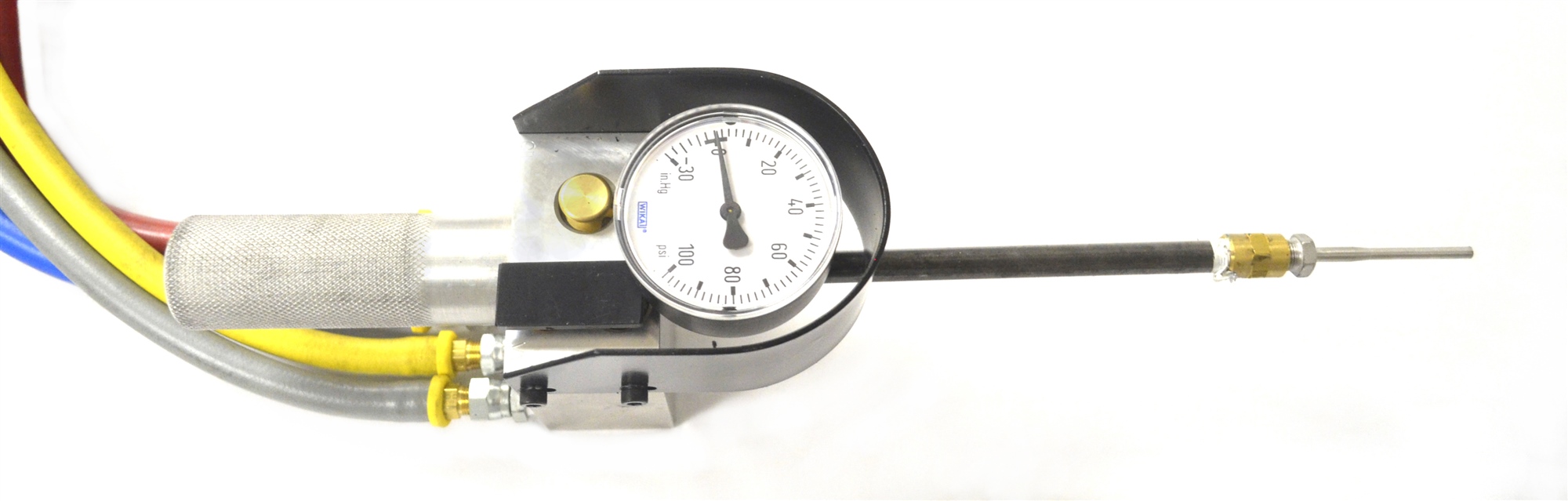

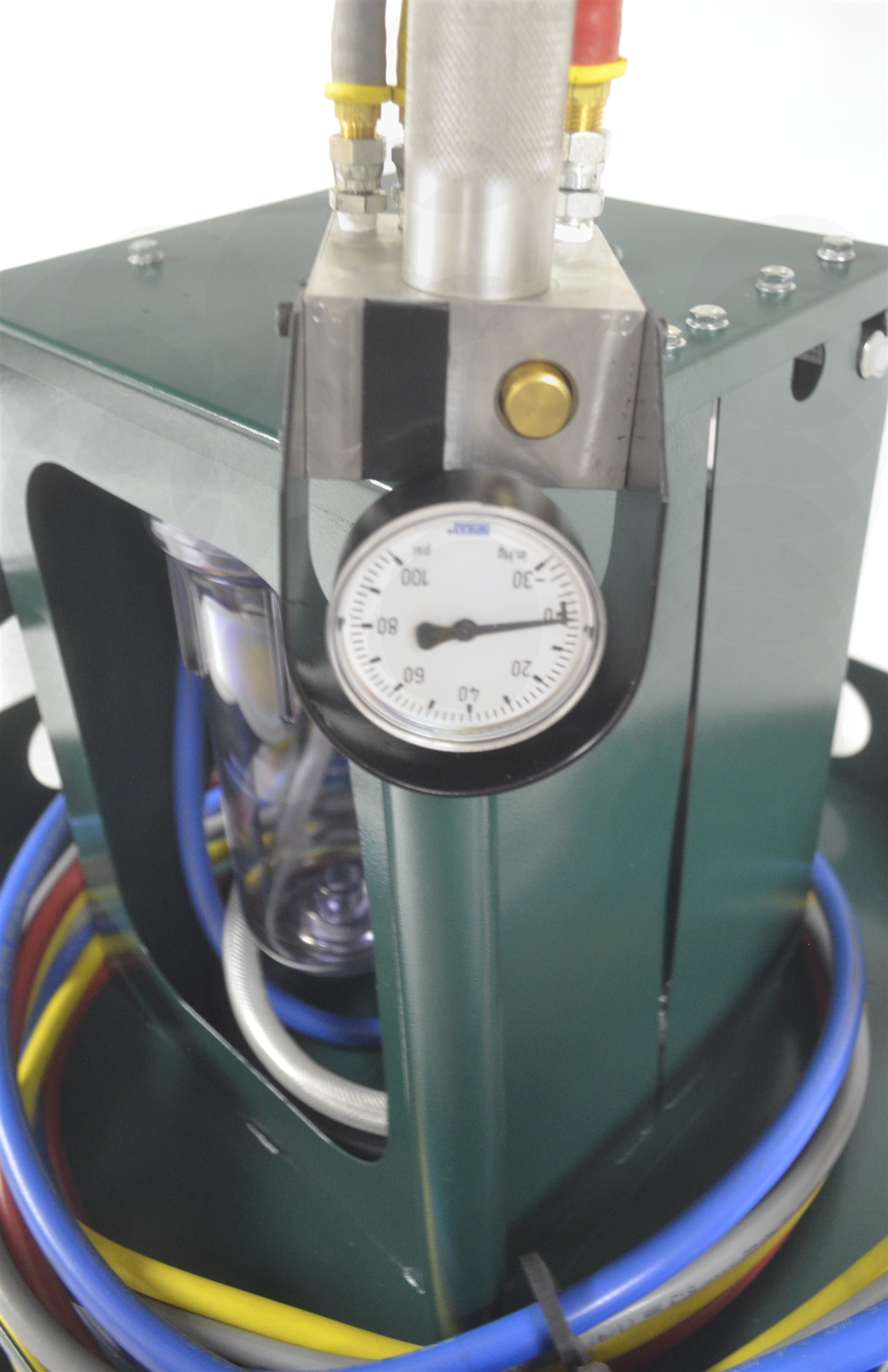

Featuring a compact handle, with an easy-to-read test gauge and pushbutton controls for Vacuum Test and Oil Dispense. This lubricator removes old lubricant from pin and bushing sets on SALT crawler chain, tests for seal leakage, and then re-fills the pin and bushing sets with fresh lubricant.

Looking for a slightly larger lubricator, check out our Seal Tester Lubricator or for a more automated option check out our Auto Luber.

NEEDLES

OPTIONAL NEEDLES FOR LUBRICATING TRACK CHAINS

Part Number:	Description:
A2024	Blunt Needle - normally used for CAT track
A2679	Rounded Tip - small diameter normally used on JD and Komatsu track
A3334	Sharp Tip - normally used on seals that are self-sealing (Sorefa)
A3422	Shaft of needle has two diameters and an open tip

SPECIFICATIONS

Air Supply:	70 and 150 psi (4.83 and 10.34 bar)
Lubricant Capacity:	1 gallons (3.78 liters)
Dry Weight:	47 lbs (21.32 kg) Hz

DOWNLOADS

Mini Luber Product Specification Sheet

Reference image for needle types
